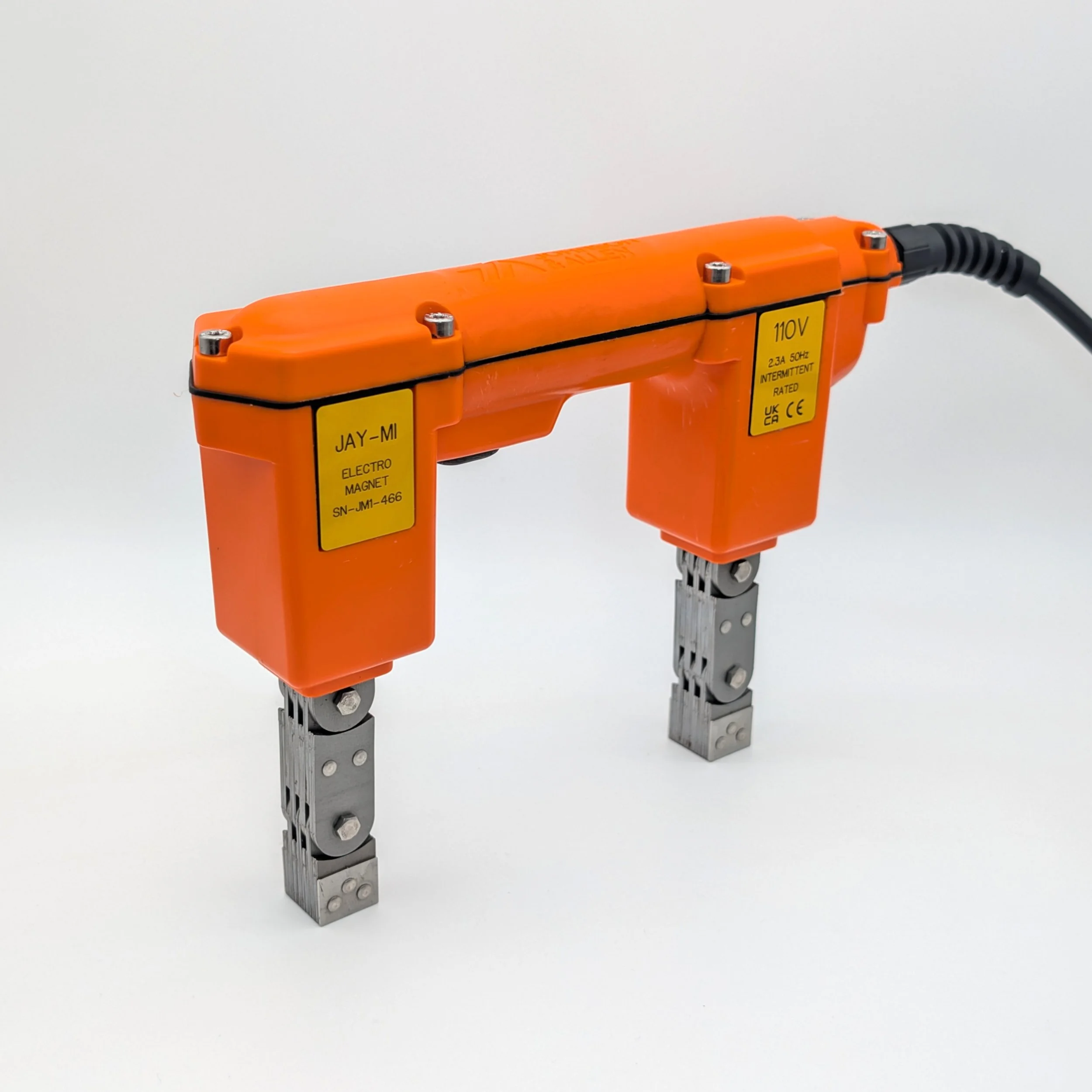

Johnson & Allen JAYMI Electromagnetic Yoke

£0.00

✓ Hire ✓ Calibration ✓ Repair ✓ Supply

The Johnson & Allen JAYMI Lightweight Electromagnetic Yoke is a compact, lightweight, and portable magnetic particle inspection instrument designed for reliable detection of surface and near-surface defects in ferromagnetic materials. Its AC electromagnetic field provides effective magnetisation for inspecting welds, castings, forgings, and other critical components, while its lightweight construction makes it easy to handle and position during inspection. Ideal for workshop and on-site use, the JAYMI is an excellent choice for weld inspection, maintenance, general magnetic particle inspection, and a wide range of non-destructive testing applications.

Key Features:

  • Lightweight AC Electromagnetic Yoke for Magnetic Particle Inspection

  • Compact, Portable & Easy-to-Handle Design

  • Ideal for Detecting Surface & Near-Surface Defects

  • Suitable for Welds, Castings, Forgings & Ferromagnetic Components

  • Ideal for Workshop, Site & On-Site NDT Applications

✓ Hire ✓ Calibration ✓ Repair ✓ Supply

The Johnson & Allen JAYMI Lightweight Electromagnetic Yoke is a compact, lightweight, and portable magnetic particle inspection instrument designed for reliable detection of surface and near-surface defects in ferromagnetic materials. Its AC electromagnetic field provides effective magnetisation for inspecting welds, castings, forgings, and other critical components, while its lightweight construction makes it easy to handle and position during inspection. Ideal for workshop and on-site use, the JAYMI is an excellent choice for weld inspection, maintenance, general magnetic particle inspection, and a wide range of non-destructive testing applications.

Key Features:

  • Lightweight AC Electromagnetic Yoke for Magnetic Particle Inspection

  • Compact, Portable & Easy-to-Handle Design

  • Ideal for Detecting Surface & Near-Surface Defects

  • Suitable for Welds, Castings, Forgings & Ferromagnetic Components

  • Ideal for Workshop, Site & On-Site NDT Applications

Check availability, pricing and lead times.

Specification

Magnetisation
Magnetisation type AC electromagnetic
Magnetic field strength > 2.5 kA/m at 152 mm pole spacing
Lifting force > 4.5 kg / 44 N
Waveform AC
Physical Specifications
Recommended pole spacing 135 mm
Pole spacing range 60–210 mm
Leg / pole contact size 20 × 20 mm
Dimensions 260 × 50 × 190 mm (L × W × H)
Weight 2.30 kg
Electrical Specifications
Power supply 110 VAC
Current (unloaded) 2.3 A
Frequency 50 / 60 Hz
Voltage regulation ±10% of nominal
Mains lead 3 m
Plug type 'C' Form – 16 A
Environmental & Protection
Ingress protection IP56
Duty cycle 25% – maximum ON time 30 seconds
Standards & Compliance
Specification compliance ISO 9934:2016, ASTM E1444-22a, ASTM E709-21, ASTM E3024-22a
