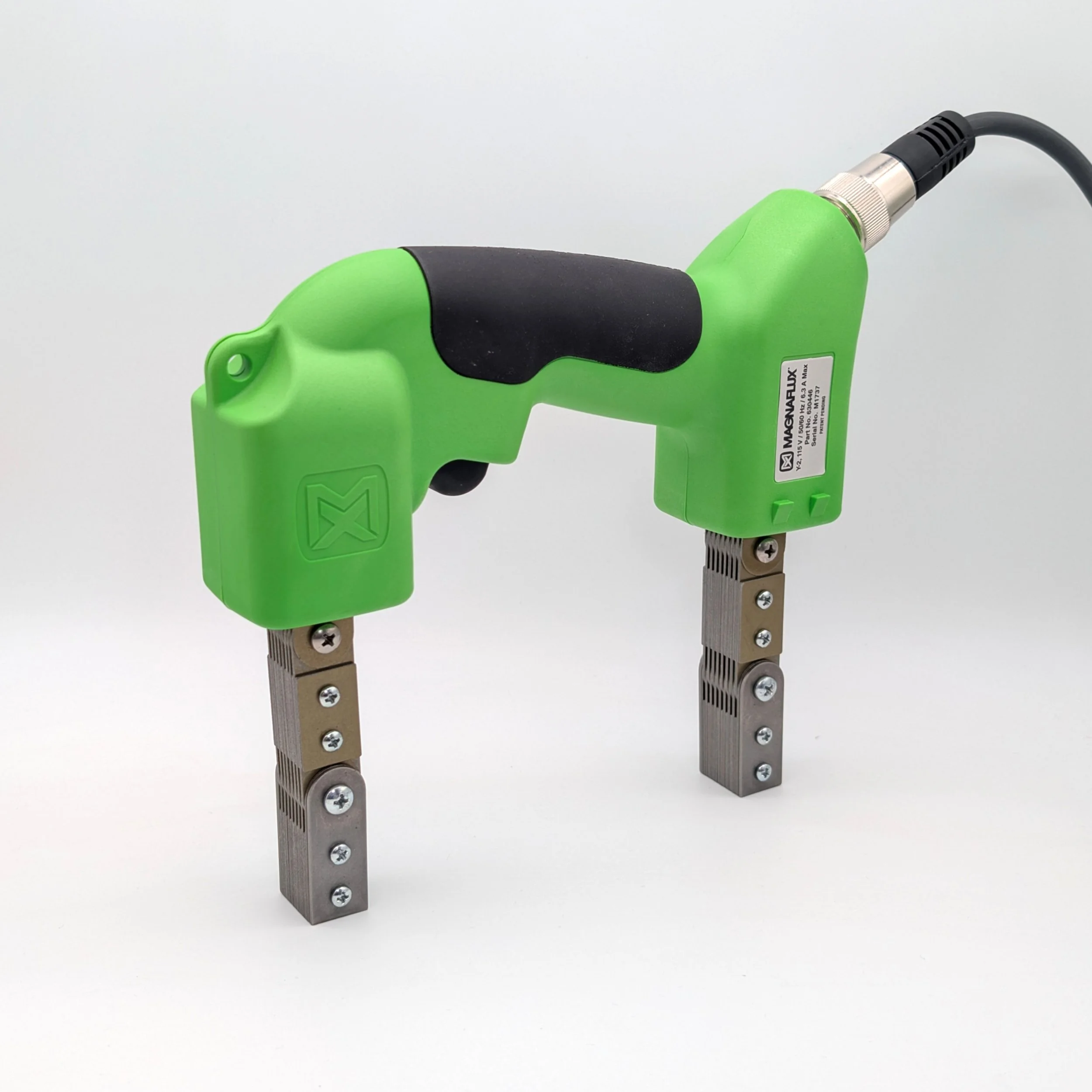

Magnaflux Y-2 Electromagnetic Yoke

£0.00

✓ Hire ✓ Calibration ✓ Repair ✓ Supply

The Magnaflux Y-2 Electromagnetic Yoke is a compact, rugged, and portable magnetic particle inspection instrument designed for reliable detection of surface and near-surface defects in ferromagnetic materials. Its powerful electromagnetic field provides effective magnetisation for inspecting welds, castings, forgings, and other critical components, while its lightweight design makes it easy to use in both workshop and on-site inspection environments. With its durable construction, simple operation, and versatile inspection capabilities, the Magnaflux Y-2 is ideal for non-destructive testing, weld inspection, maintenance, and general magnetic particle inspection applications.

Key Features:

  • Powerful Electromagnetic AC Yoke for Magnetic Particle Inspection

  • Portable, Lightweight & Rugged Design

  • Ideal for Detecting Surface & Near-Surface Defects

  • Suitable for Welds, Castings, Forgings & Ferromagnetic Components

  • Designed for Workshop & On-Site NDT Applications

✓ Hire ✓ Calibration ✓ Repair ✓ Supply

The Magnaflux Y-2 Electromagnetic Yoke is a compact, rugged, and portable magnetic particle inspection instrument designed for reliable detection of surface and near-surface defects in ferromagnetic materials. Its powerful electromagnetic field provides effective magnetisation for inspecting welds, castings, forgings, and other critical components, while its lightweight design makes it easy to use in both workshop and on-site inspection environments. With its durable construction, simple operation, and versatile inspection capabilities, the Magnaflux Y-2 is ideal for non-destructive testing, weld inspection, maintenance, and general magnetic particle inspection applications.

Key Features:

  • Powerful Electromagnetic AC Yoke for Magnetic Particle Inspection

  • Portable, Lightweight & Rugged Design

  • Ideal for Detecting Surface & Near-Surface Defects

  • Suitable for Welds, Castings, Forgings & Ferromagnetic Components

  • Designed for Workshop & On-Site NDT Applications

Check availability, pricing and lead times.

Specification

Magnetisation
Magnetisation type AC electromagnetic
Magnetic field strength > 2 kA/m at midpoint between legs
Lifting force > 10 lb / 4.5 kg / 44 N
Defect detection Surface and near-surface indications
Physical Specifications
Leg / pole span 2.5–10.5 in / 6.4–27 cm
Pole contact size 1.00 × 0.75 in / 25 × 19 mm
Dimensions 9 × 8.25 × 2.25 in / 23 × 21 × 6 cm
Weight 4.8 lb / 2.2 kg (Yoke only)
Electrical Specifications
Power supply 110–115 V, 50–60 Hz
Maximum current 4.3 A at 60 Hz / 6.3 A at 50 Hz
Cord length 12 ft / 3.6 m, detachable
Environmental & Protection
Ingress protection IP54
Duty cycle 50% – maximum on time 90 seconds
Standards & Compliance
Applicable standards ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, ISO 9934-3, MIL-STD-271

Downloads

Y-2 Operator Manual
